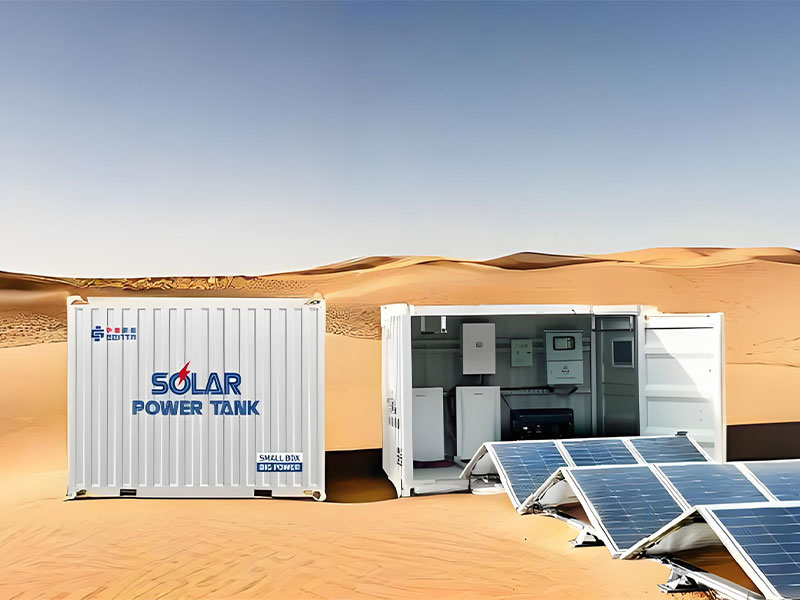

Solaris ESS Continens (Rail Type)

Totalis pondus (Tons) -5
Solaris Array Capacity (Pmax /kWp) ：18.9(18~20)
Type of Solar Module (W) ：630x30(550~650)
String Inverter (kW)：12×2 Hybrid
Bracket (Numerus Module per Sheet) ：1x30
Lithium Battery Repono(kWh)：10.24x2(10~20)
Diesel Generator (KVA) (Libitum) 5.5x1
Total Explicata Footprint (L*W*H/m)：47*2.3(2.9)*0.6(2.2)
Area occupata totius systematis (m²)：106(47*2.25)
Complete Unfolding Tempus (min) -60
Complete Folder Tempus (min) ：50
Institutionem personarum 4

Totalis pondus (Tons) -7.5
Capacitas solaris (Pmax /kWp) 30.72(30~35)
Type of Solar Module (W) ：480x64(480~520)
String Inverter (kW)：12x2 Hybrid
Bracket (Numerus Module per Sheet) ：2x32
Lithium Battery Repono(kWh)：10.24 x4(10~20)
Diesel Generator (KVA) (Libitum) 5.5x1
Total Explicata Footprint (L*W*H/m)：70*2.4(3.0)*0.8(2.6)
Area occupata totius systematis (m²) ：167(70*2.38)
Complete Unfolding Tempus (min) -80
Complete Folder Tempus (min) ：60
Institutionem personarum 4

Totalis pondus (Tons) ：13.5
Solar Array Capacity (Pmax /kWp)：60.48(60~70)
Type of Solar Module (W) ：480x126(480~520)
String Inverter (kW) ：50x1 Hybrid/100 Off
Bracket (Numerus Module per Sheet) ：3x42
Lithium Battery Repono(kWh)：229x1(215~258)
Diesel Generator (KVA) (Libitum) ：13.8x1
Total Explicata Footprint (L*W*H/m)：89*3.6(6.0)*0.8(2.6)
Area occupata totius systematis (m²) ：316(89*3.56)
Complete Unfolding Tempus (min) -120
Complete Folder Time (min) -80
Institutionem personarum 4

Totalis pondus (Tons) ：16.5
Capacitas solaris (Pmax /kWp) ：74.97(75~85)
Type of Solar Module (W) ：595 x126(585~650)
String Inverter (kW)：50x1 Hybrid/100 Off
Bracket (Numerus Module per Sheet) ：3x42
Lithium Battery Repono(kWh)：229x1(215~258)
Diesel Generator (KVA) (Libitum) ：13.8x1
Total Explicata Footprint (L*W*H/m)：104*3.6(6.0)*0.9(2.9)
Area occupata totius systematis (m²) ：370 (104*3.55)
Complete Unfolding Tempus (min) ：150
Complete Folder Time (min) ：100
Institutionem personarum 4

Totalis pondus (Tons) ：27
Capacitas solaris (Pmax /kWp) ：141.12(140~160)
Type of Solar Module (W) ：480x294(480~520)
String Inverter (kW)：50x2 Hybrid/100 Off
Bracket (Numerus Module per Sheet) ：(4 3)x42
Lithium Battery Repono(kWh)：229x1(215~258)
Diesel Generator (KVA) (Libitum) ：13.8x1
Total Explicata Footprint (L*W*H/m)：89*9.3(12.0)*0.8(2.6)
Area occupata totius systematis (m²)：824(89*9.25)
Complete Unfolding Tempus (min) -180
Complete Folder Time (min) -120
Institutionem personarum 4

Totalis pondus (Tons) ：32.5
Solaris Array Capacity (Pmax /kWp) ：149.94(150~170)
Type of Solar Module (W) ：595x252(585~650)
String Inverter (kW)：50x2 Hybrid/200 Off Grid
Bracket (Numerus Module per Sheet) (3 3)x42
Lithium Battery Repono(kWh)：229x1(215~258)
Diesel Generator (KVA) (Libitum) ：13.8x1
Total Explicata Footprint (L*W*H/m)：104*8(12.0)*0.9(2.9)
Area occupata totius Systematis (m²) ：832(104*8)
Complete Unfolding Tempus (min) ：220
Complete Folder Time (min) ：150
Installation Persons6
