LFP 3000/HV Stack Mounted Battery Suppliers
Home / Products / Components Products / Pugna / Inverter / LFP 3000/HV Stack Mounted Battery
  • LFP 3000/HV Stack Mounted Battery
Pugna / Inverter

LFP 3000/HV Stack Mounted Battery

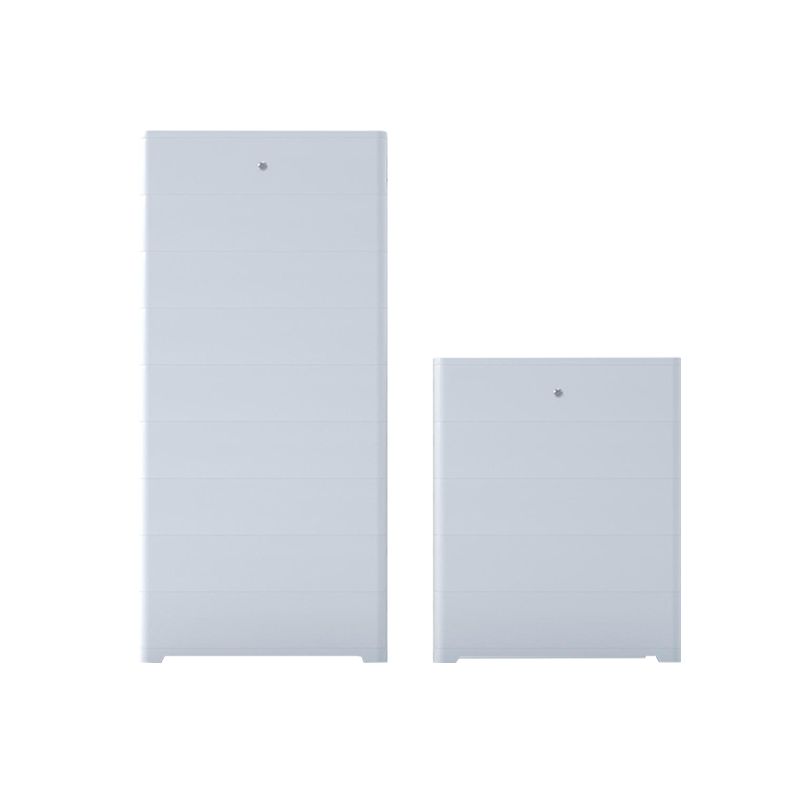

LFP 3000 / HV Stack Pugna est summus capacitas, solutio energiae modularis ad applicationes commerciales et industriales dispositae. Aliquam technologiam provectam LFP (LiFePO4) technologiam praebet, superiorem salutem, longitudinis vitam et cyclum plusquam 6000 circuitus praebet. Eius consilium acervum permittit faciles scalabiles, ut users ad voltages et facultatem ad magnas scalas energias occurrendas idoneus. Cum architectura alta intentione et durabilitate IP65 aestimata, efficit ut perficiat ut in ambitibus exigendis.

Instructus ad systema callidi BMS, pugna optimizes elaborandis/faciendisque processibus providens tempus reale vigilantiam et tutelam contra aestus, imminentes, et breves circuitus providet. Lata eius operativa temperatura range et refrigeratio naturalis systematis diversis climatibus aptam facit. Utrum usus in praediis solaris, systemata energiae ventorum, vel potentiae industrialis tergum, haec pugna certas, efficientes, scalabiles energias repositas liberat..

  • LFP 3000/HV Stack Mounted Battery
PREV：SNE 1000-2.56/2000-5.12/3000-10.24 Aio Machine mobile   |    DEINDE：LFP 5-10KWH/LV Wall Mounted altilium

+ Contact us + Catalogue Download

Product Description

Model LFP 9kWh LFP 12kWh LFP 15kWh LFP 18kWh LFP 21kWh LFP  24kWh LFP   27kWh LFP   30kWh
Available Energy * 8.64kWh 11.52kWh 14.40kWh 17.28kWh 20.16kWh 23.04kWh 25.92kWh 28.80kWh
Pugna amet LFP 3000/HV:57.6V 50Ah
Numerus Modulorum 3 4 5 6 7 8 9 10
Nominal Voltage 172.8V 230.4V 288V 345.6V 403.2V 460.6V 518.4V 576V
Operans intentione dolor 135-197.1V 180-262.8V 225-328.5V 270-394.2V 315-459.9V 360-525.6V 405-591.3V 450-657V
Nominal officii / incurrentes Current 50/25A
Max.Charge intentione 197.1V 262.8V 328.5V 394.2V 459.9V 525.6V 591.3V 657V
Pondus 102kg 131kg 160kg 189kg 218kg 247kg 276kg 305kg
Dimensio (mm) 670* 330* 697 670*330*855 670*330*1013 670* 330*1171 670* 330* 1329 670* 330* 1487 670*330*1645670*330*1803
Testimonia CE, UN38.3,IEC62619,IEC63056
Maximilianus. commendatur DOD 90%
Operans Condition amet vel velit
Operans crimen 0~55℃
Temperatus Discharge -20~55℃
Umor 0 ~ XCV% (non aqua condensata)
Pollutio Degree 3
Plus intentione Categoria Ⅱ
Type refrigerationem Natural refrigeratio
Materia Metal Plastic
IP Rating IP 54
Tutela Classis I
Warranty X annis
Vita Span > XV annis
Communicationis CAN / WIFI
Tutela Modus Triplex hardware praesidium
Tutela altilium Plus-current/super-voltage/circuitu brevis/sub-voltage
Ancipitia Material Classification 9
