LFP 5-10KWH/LV Wall Mounted altilium Suppliers
Home / Products / Components Products / Pugna / Inverter / LFP 5-10KWH/LV Wall Mounted altilium
  • LFP 5-10KWH/LV Wall Mounted altilium
  • LFP 5-10KWH/LV Wall Mounted altilium
  • LFP 5-10KWH/LV Wall Mounted altilium
Pugna / Inverter

LFP 5-10KWH/LV Wall Mounted altilium

The LFP 5-10KWh/LV Murus Pugnatus est summus energiae repositionis operandi solutio destinata ad applicationes residentiales et leves commerciales. Certis LFP (LiFePO4) cellulis utitur cum super 6000 cyclis et curriculo plusquam 15 annorum, ad diuturnum firmitatem praestans. Canbus in altilium connexionem vexillum sustinet, cum variis inverters compatitur, et usque ad 160kWh per nexus parallelos ad diversas necessitates energiae occurrere. Eius IP65 rating ratio et refrigeratio naturalis efficacem operationem in diversis ambitibus praestant.

Instructus cum systemate callido BMS, pugna optimizes increpans/efficentiam exercens ac realem tempus vigilantiam praebet. Cum triplici ferramentorum praesidio deducta, tutam ac diuturnitatem praestat. Utrum ad industriam solarem repositionis, potentiae tergum, vel systemata extemporalitatis, haec pugna praebet solutionem energiae efficientis, flexibilis et diuturnae..

  • LFP 5-10KWH/LV Wall Mounted altilium
  • LFP 5-10KWH/LV Wall Mounted altilium
  • LFP 5-10KWH/LV Wall Mounted altilium
PREV：LFP 3000/HV Stack Mounted Battery   |    DEINDE：Nullus proximus articulum

+ Contact us + Catalogue Download

Product Description

Exemplar LFP 5kWh/LV LFP 10kWh/LV
Available Energy 4.6kWh 9.2kWh
Nominal officii / dato potentia 2.5kW 5kW
Apicem Power (officii sint tantum) 2.9kWh pro III secundis 5.8kWh in III seconds
Constant Current (officii sint tantum) 50A 100A
Voltage Range 48-56Vd.c
Nominal Voltage 51.2Vd.c
Max.Charge intentione 59.2V±0.5Vd.c
Pondus 65kg 116.5kg

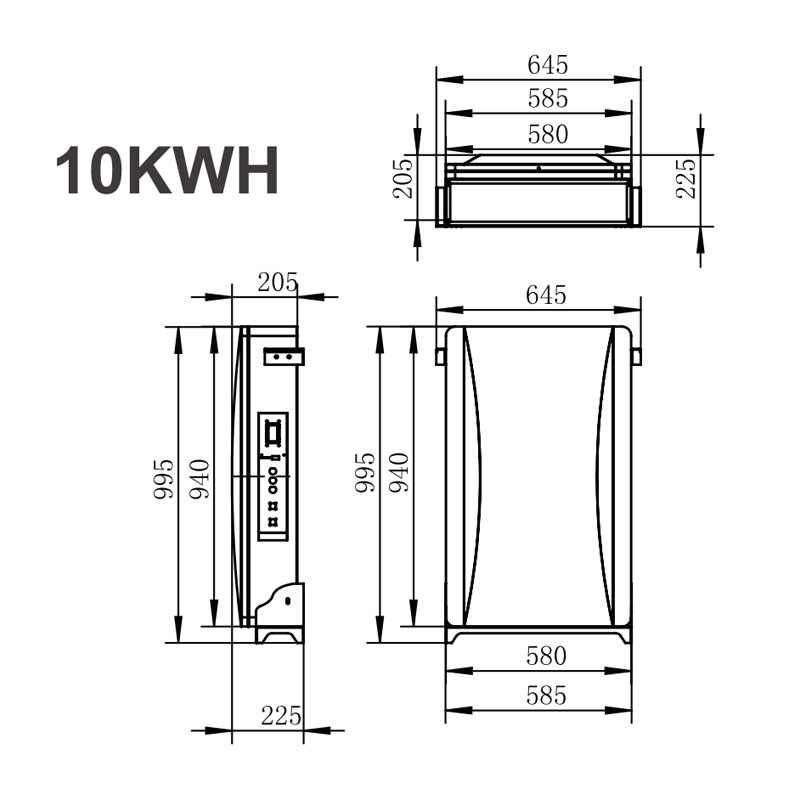

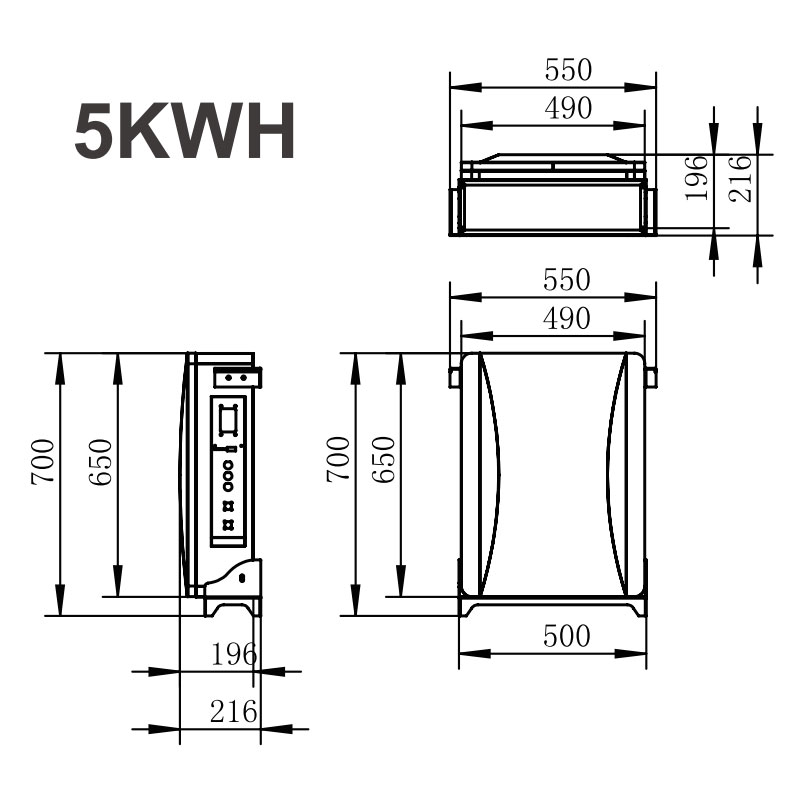

Dimensio (mm) 490(550)*650(700)*196(216)mm* 585(645)*940(995)*205(225)mm
Testimonia CE、UN38.3、IEC62619、IEC63056
Maximilianus. commendatae DOD 90%
Operans Condition amet vel velit
Operans Praecipe 0~45℃
Temperature Dimittite -10~50℃
Umor IV ~ C% (non aqua condensata)
Pollutio Degree 3
Plus intentione Categoria Ⅱ
Type refrigerationem Natural refrigeratio
Materia Metal Plastic
IP rating IP 65
Tutela Classis I
Max.Number Parallel seu Series 16
Warranty X annis
Vita Span > XV annis
Communicationis CAN/RS485
Tutela Modus Triplex hardware praesidium
Tutela altilium Plus-current/super-voltage/circuitu brevis/sub-voltage
Ancipitia Material Classification 9
